Tabung H Fin untuk Pemulihan Panas Limbah
Product Details
| Bahan bakar: | Batubara/Gas/Minyak, Panas Air | Jenis: | Primer dan sekunder |
|---|---|---|---|
| Rentang Aplikasi: | Pembangkit listrik | Spesifikasi: | Inspeksi ASME |
| Pemeriksaan: | Inspeksi ASME | Dimensi Tabung: | 38.1*3.2 |
| Bahan bakar boiler: | Panas Batubara/Gas/Batubara/Air | Kata kunci: | Kata kunci |
| Kata kunci: | Economizer boiler | Bahan: | Baja karbon / baja tahan karat |
| Penggunaan: | Pembangkit Listrik/CFB Boiler | ||
| Menyoroti |
Economizer boiler industri ASME |
||
Product Description

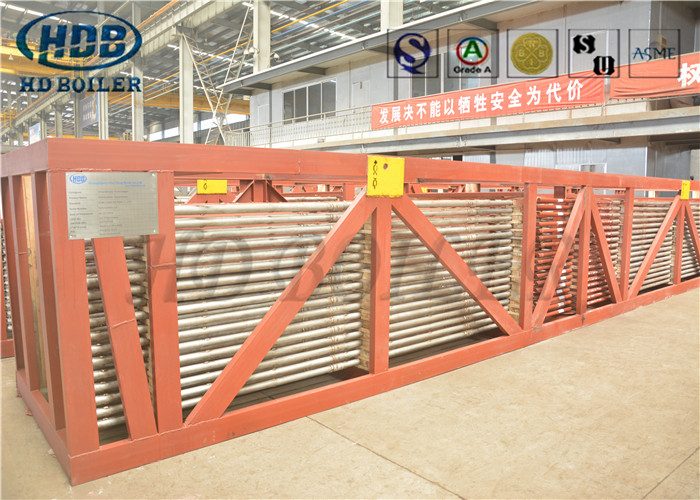

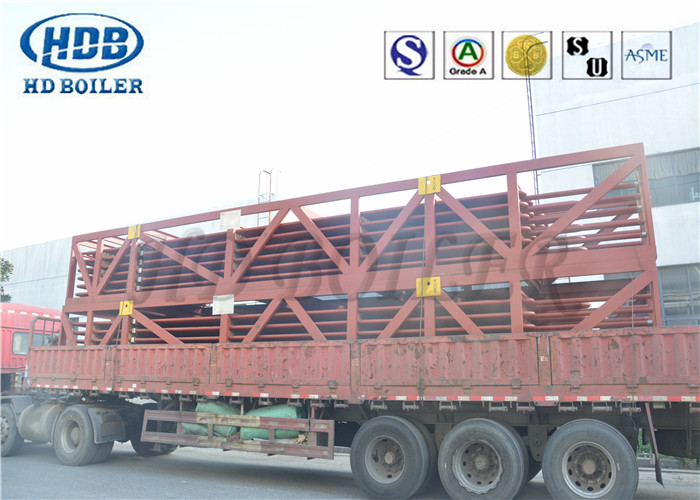

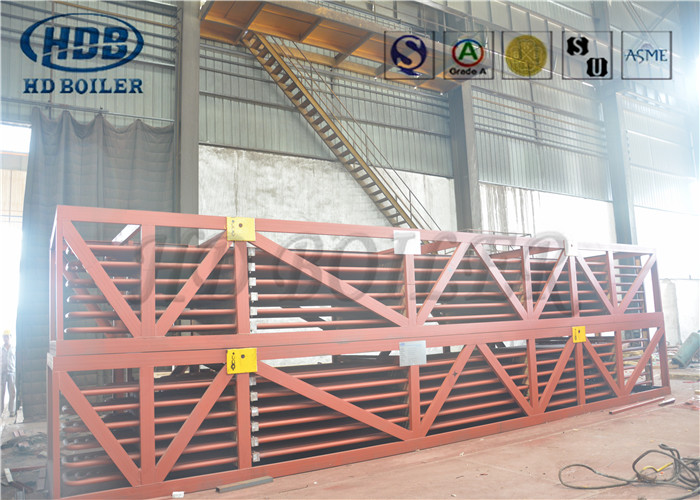

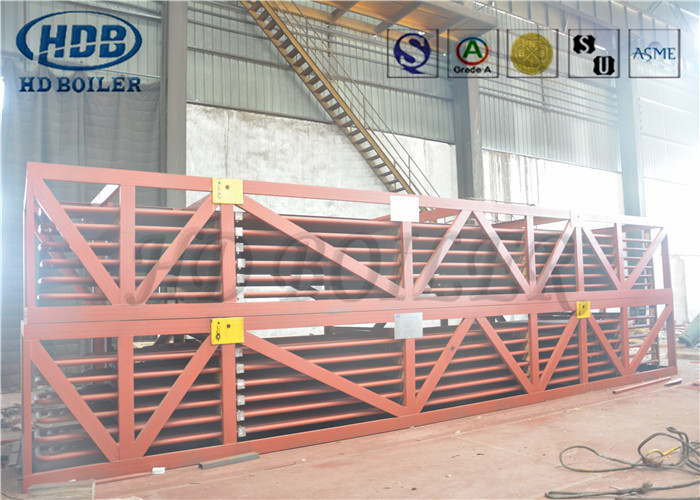

Pengembalian Panas Limbah H Fin Tube High Frequency Welding Industrial Boiler Economizer ASME
Karakteristik kinerja:
- 1. Kinerja anti-wear yang sangat baik
- 2. Kurang mencemari
- 3. Ruang yang kompak
- 4. sendi dilas kurang
- 5Stabilitas
Parameter
| Nama (unit) | Spesifikasi (mm) |
| Pipa kosong (OD) | 25-165 |
| Pipa kosong ((Kelenjangan) | 2-8 |
| Pin (Kebalinya) | 0.6-3.0 |
| Pin (Tinggi) | 5-30 |
| Pitch benang tabung sirip | 5-30 |
| Panjang tabung sirip | ≤ 12000 |
* Catatan: HD BOILER dapat membuat jenis ekonom khusus sesuai dengan kebutuhan pelanggan.
Spesifikasi:
- CFB series energy saving boiler high quality economizer adalah perangkat penukar panas yang menangkap "panas hilang atau limbah" dari gas tumpukan panas boiler.
- Teknologi terbaru ketel spiral pipa bergelombang ekonomizer biasanya mentransfer panas limbah ini ke ketel pasokan air atau kembali sirkuit air,tetapi juga dapat digunakan untuk memanaskan air rumah tangga atau cairan proses lainnya. Ini adalah pengenalan tentang CFB seri penghematan energi boiler ekonomis berkualitas tinggi.
Kriteria pembuatan dan penerimaan:
· JB/T6512 "ketel dengan resistensi frekuensi tinggi pengelasan spiral fin tabung kondisi teknologi manufaktur"
· HG/T3181 "tabung spiral pemanggang resistensi frekuensi tinggi"
· JB/T6511 "keadaan teknis pengujian tabung spiral fined".
· JB1611 "kondisi pemasangan kotoran tabung mane box"
· JB/T1612 "kondisi produksi tekanan boiler".
· JB16I3 "kondisi pengelasan bagian tekanan boiler".
Pengantar Perusahaan
HD Boiler menawarkan fasilitas terbaik di kelasnya,termasuk:
- Luas produksi 200.000 meter persegi
- 150 Insinyur
- 600 Pengelasan dengan kode
- 60 Inspektur berlisensi (termasuk instruktur NDT tingkat-III)
- Kelas-ALisensi untuk Desain dan Produksi boiler (diterbitkan oleh Administrasi Negara Pengawasan dan Inspeksi Mutu)
- ISO 90001:2008Sistem Kualitas
- ASMESertifikat boiler utilitas
- ASME️SAku tidak tahu.U¢ danNBizin cap
