Solusi Boiler Power Station Panel Membran Tembok Baja Karbon Disesuaikan
Product Details
| Aplikasi: | Dinding Ketel | Rentang Tekanan: | Hingga 10MPa |
|---|---|---|---|
| Ukuran: | disesuaikan | Bahan: | Baja karbon |
| Kisaran suhu: | Hingga 600°C | Warna: | disesuaikan |
| Menyoroti |
Panel Dinding Membran Baja Karbon,Solusi Boiler Panel Dinding Membran,Tembok Membran Boiler Stasiun Listrik |
||
Product Description

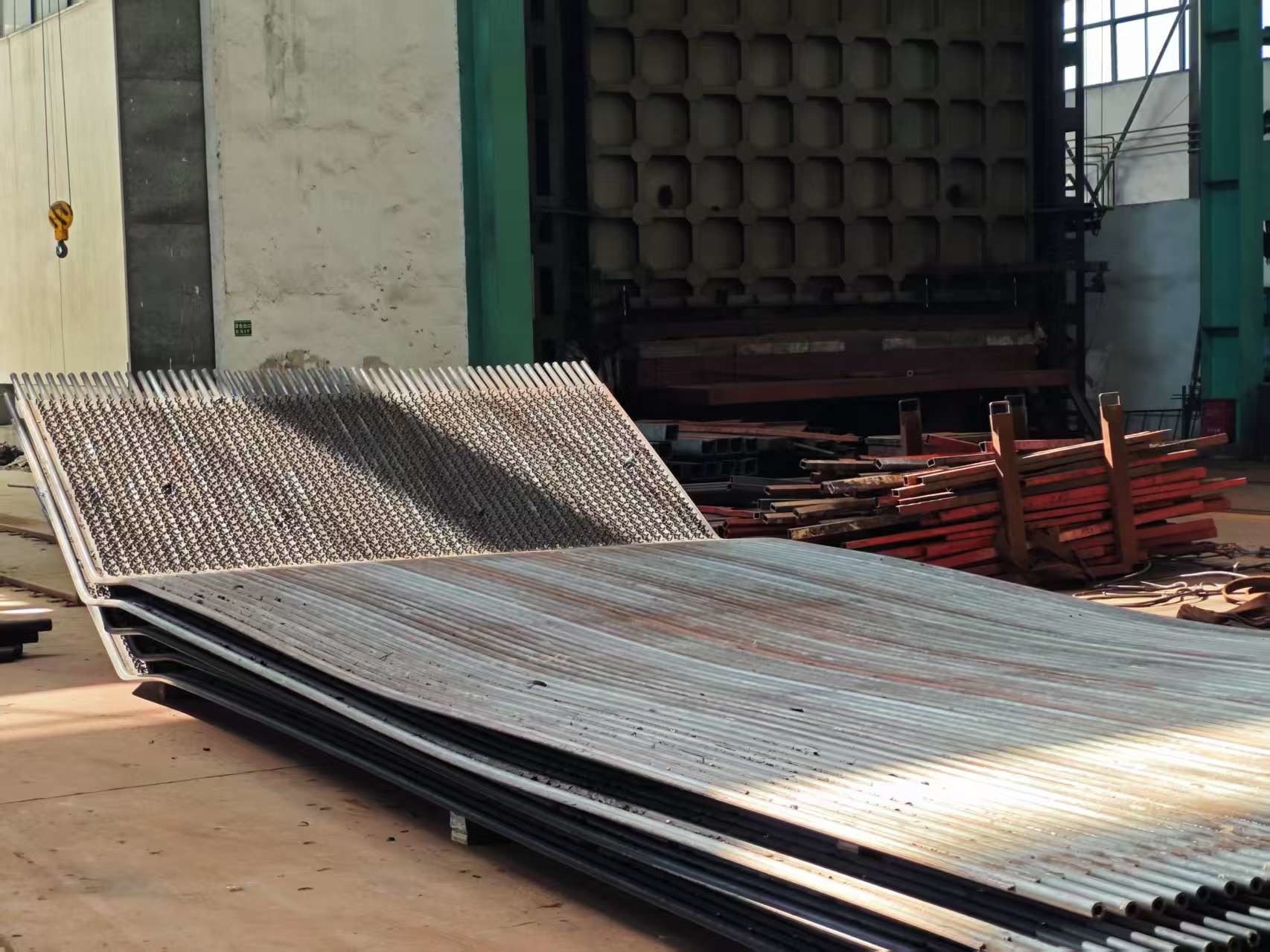

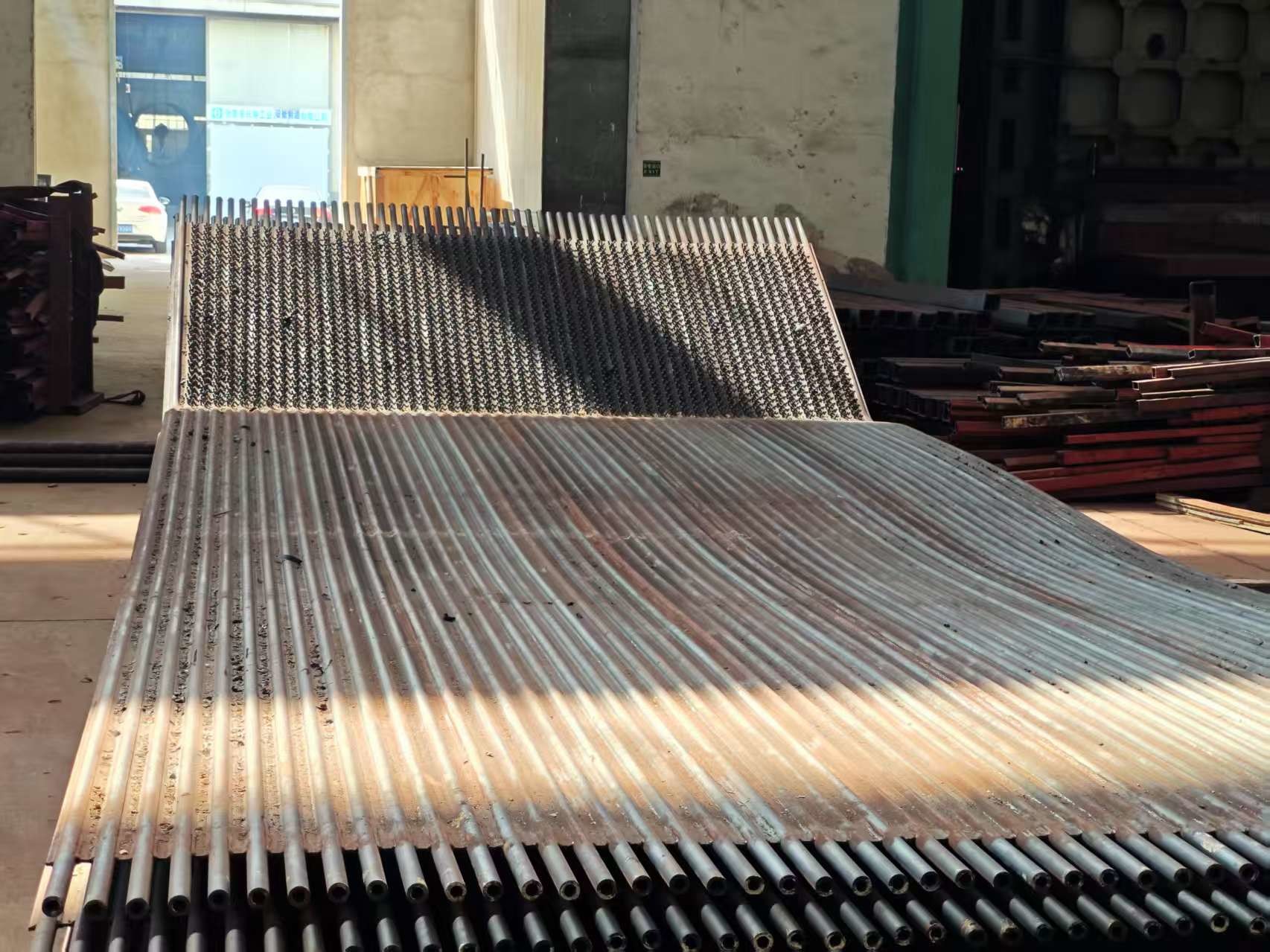

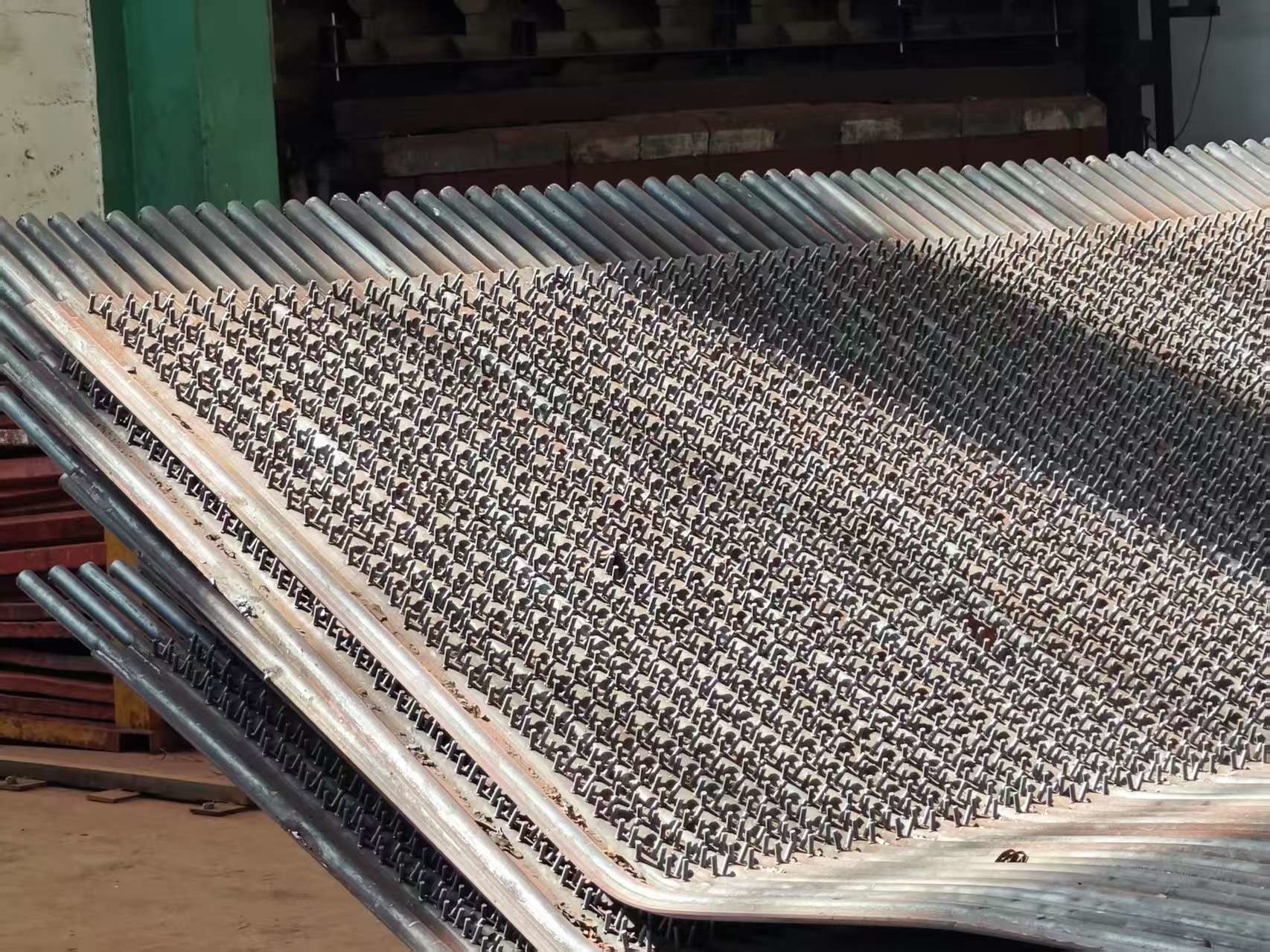

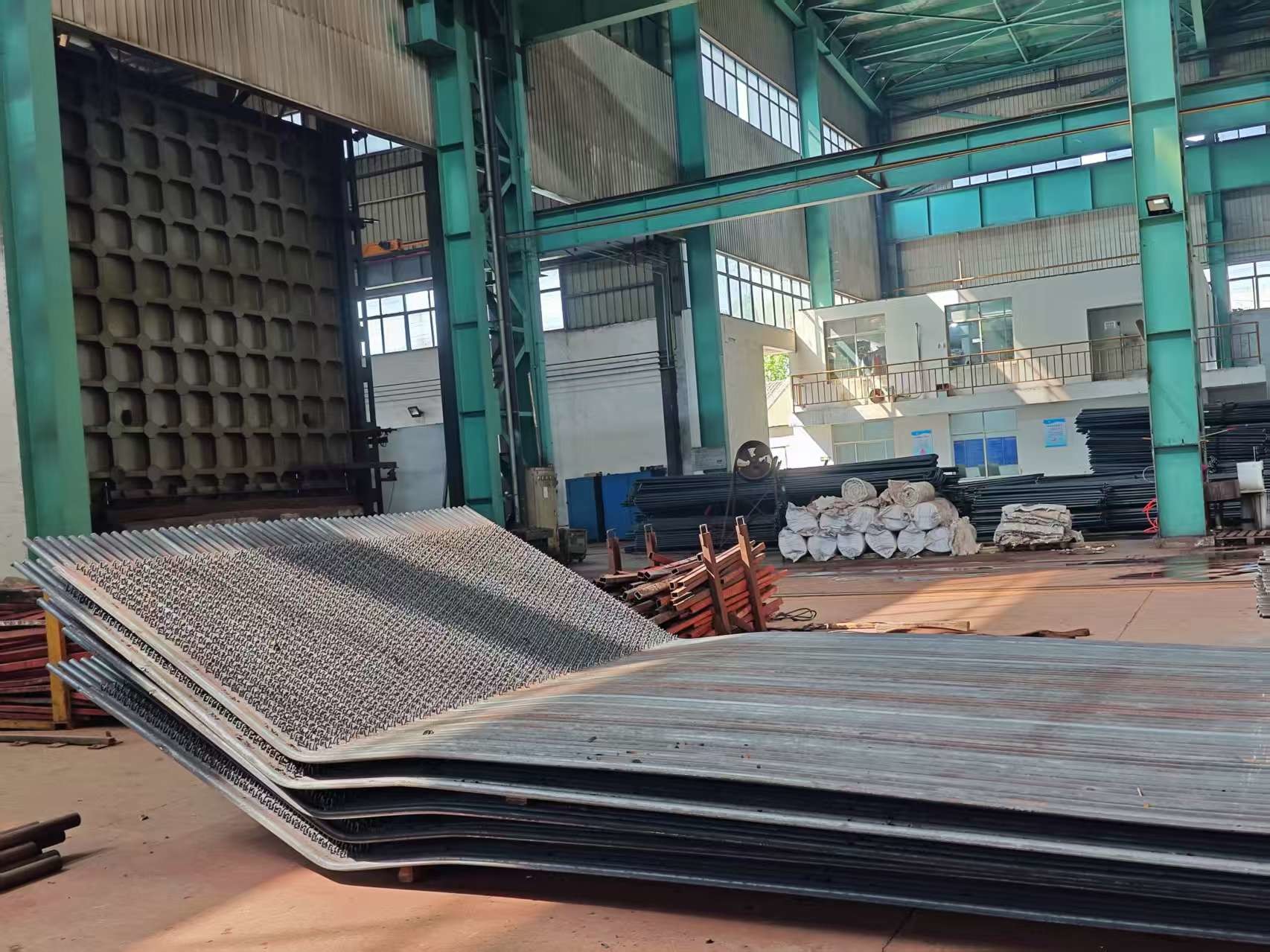

Solusi Boiler Pembangkit Listrik Panel Dinding Membran Baja Karbon yang Disesuaikan
Bagaimana cara memeriksa kualitas las?
PT (cacat permukaan), RT (cacat internal), uji tekanan pneumatik.
Spesifikasi
| Nama | Panel air membran |
| Material | Baja karbon, Paduanbaja,dll. |
| Ukuran pipa | Φ38 - 76 mm, Kustomisasi |
| Standar | ISO, ASME |
| Model | Berpaku |
| Dimensi | Kustomisasi |
| Proses manufaktur | Material→Ingot → Penggulungan Panas/Dingin→ Perlakuan panas (Normalisasi+ tempering) → Inspeksi →Pemolesan→Pipapengelasan sambungan→Perakitan→Pengelasan→Inspeksi→Perlakuan panas→Uji tekanan hidrolik→Pengecatan→ Pengemasan |
| Lokasi pemasangan | Di sekitar ruang bakar boiler |
Keuntungan Panel Dinding Air
1. memastikan penyegelan dinding tungku dan mengurangi kebocoran udara di ruang bakar.
2. mewujudkan pendinginan air penuh di ruang bakar, yang kondusif untuk mencegah kokas di bawah kondisi pembakaran yang diperhebat.
3. kapasitas penyimpanan panas rendah, pemanasan dan pendinginan ruang bakar yang cepat, yang dapat mempersingkat waktu pendinginan saat memulai dan menghentikan boiler.
4. cocok untuk menggunakan dinding tungku peletakan pipa, yang sangat mengurangi beban rangka boiler dan memfasilitasi suspensi.
5. dibandingkan dengan pipa ringan, kapasitas penyerapan panas pipa ditingkatkan.
6. meningkatkan tingkat pra-perakitan komponen boiler, memfasilitasi dan mengurangi beban kerja pemasangan.
Deskripsi Produksi
Pengantar Perusahaan
Didirikan pada tahun 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (berdagang sebagai HD Boiler), memproduksi pembangkit listrik; industri; limbah panas; insinerasi limbah; biomassa; pembawa panas organik dan boiler uap listrik. Ditambah dengan berbagai permukaan pemanas, HD Boiler menghadirkan layanan unik ke pasar termasuk desain boiler, fabrikasi, pemasangan, pemeliharaan, dan penggantian bagian tekanan boiler.
