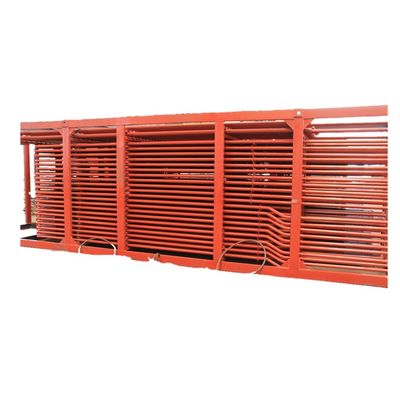

Economizer Boiler CFB Pembangkit Listrik dengan Pemanas Sentral dan Garansi 1 Tahun Sertifikasi ASTM
Product Details
| Jenis: | Sirkulasi Alam | Struktur: | Tabung api dan tabung air |
|---|---|---|---|
| Tekanan: | Tekanan Rendah / Tinggi | Gaya: | Vertikal |
| Bahan bakar: | Batubara / Gas / Batubara / Panas air | Keluaran: | Air Panas / Uap |
| Berat: | 20000 kg | Perawatan permukaan: | Dilukis |
| Od pipa telanjang: | 25-1650 mm | Ketebalan pipa telanjang: | 2-40 mm |
| Ketebalan sirip: | 0,6-3,0mm | Tinggi sirip: | 5-30 mm |
| Pitch tabung sirip: | 5-30 mm | Panjang tabung sirip: | ≤12000 mm |
| Bahan: | Baja karbon, paduan, baja austenitik | ||
| Menyoroti |
Economizer Boiler CFB Pembangkit Listrik,Economizer Boiler Pemanas Sentral,1 Tahun Garansi Boiler Economizer |
||
Product Description
Economizer adalah perangkat mekanis yang dirancang untuk mengurangi konsumsi energi dengan memanaskan cairan terlebih dahulu. Economizer boiler CFB ini digunakan di pembangkit listrik, sistem pemanas, dan aplikasi HVAC, berfungsi sebagai penukar panas yang efisien untuk meningkatkan kinerja sistem secara keseluruhan.
Fungsi utama dari economizer ini adalah untuk mengurangi biaya pendinginan dengan meminimalkan waktu pengoperasian kompresor sambil mempertahankan kapasitas pendinginan yang memadai, menghasilkan penghematan energi yang signifikan.
| Nama (satuan) | Spesifikasi (mm) |
|---|---|
| Pipa polos (OD) | 25-1650 |
| Pipa polos (Ketebalan) | 2-40 |
| Sirip (Ketebalan) | 0.6-3.0 |
| Sirip (Tinggi) | 5-30 |
| Pitch ulir tabung sirip | 5-30 |
| Panjang tabung sirip | ≤12000 |
Material: Baja Karbon, Paduan, Baja Austenitik (Nikel dan Kromium atau Mangan)
- Laporan uji impak dan perhitungan kekuatan dengan informasi material yang diterapkan
- Laporan NDT (pemeriksaan non-destruktif) 100% dari pelat baja, tabung, dan elektroda
- Laporan inspeksi uji sinar-X, γ-ray, dan penetran cair (sambungan las)
- Laporan uji hidrolik untuk memastikan tekanan kerja standar dan keselamatan
