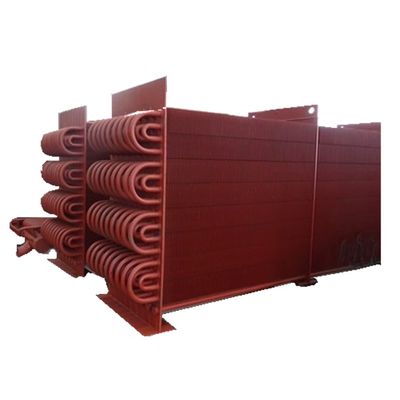

Ekonomizer Boiler Horisontal Efisiensi Termal Tinggi dengan Garansi 1 Tahun dan Desain Tabung Serpentine
Product Details
| Jenis: | Sirkulasi Alam | Struktur: | Tabung Air |
|---|---|---|---|
| Tekanan: | Tekanan tinggi | Produksi Uap: | Max. 60t/jam |
| Gaya: | horisontal | Bahan bakar: | Batubara |
| Keluaran: | Air panas | Bahan: | Plat baja boiler khusus |
| Efisiensi Termal: | 92,4%--94,5% | Tekanan kerja: | Tekanan tinggi |
| Berat: | 1-20ton | Proses peleburan: | EF+LF + VD |
| Standar Bahan: | ASTM, EN atau ISO dll. | Ut Standar: | ASTM A388 atau EN10228, dll |
| Proses: | Bahan-> ingot -> panas/dingin -rolling-> perlakuan panas (normalisasi+ tempering) -> ins | ||
| Menyoroti |
Penghematan Ketel Efisiensi Termal Tinggi,Boiler Economizer Horisontal,Garansi 1 Tahun Serpentine Tube Economizer |
||
Product Description
Boiler economizer adalah alat pertukaran panas dengan tabung sirip yang memanaskan cairan (biasanya air) ke suhu di bawah titik didihnya.
- Penghemat tabung kosong
- H-fined tabung ekonomizer
- Mesin penghemat tabung spiral dengan sirip
H-fined tube economizer adalah penukar panas efisiensi tinggi yang terdiri dari tabung H-fined.
- Luas pertukaran panas yang lebih besar
- Mengurangi jumlah tabung yang dibutuhkan
- Luas aliran gas buang yang diperluas untuk mengurangi kecepatan aliran dan abrasi
Tabung H-fined dapat diproduksi sebagai tabung H-fined ganda untuk kekakuan yang ditingkatkan, sehingga cocok untuk baris tabung panjang.

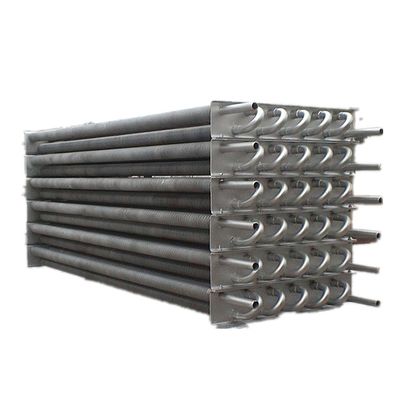

Sparkling Fin Economizer memiliki desain baru dengan tabung spiral fin yang mengatasi masalah abrasi serius dan memperpanjang umur layanan.
| Deskripsi | Penjimat boiler |
|---|---|
| Bahan | Baja paduan, baja karbon, SA210C, SA213T22, dll. |
| Standar bahan | ASTM, EN atau ISO dll. |
| Dimensi | Pengaturan khusus |
| Berat badan | Min: 10 ton Max: 1000 ton |
| Proses peleburan | EF+LF + VD |
| Proses | Material→Ingot→Hot/Cold-Rolling→Perawatan panas (Normalizing+ tempering)→Pemeriksaan→pengolahan kasar→UT→Perawatan panas ke-2→pengolahan akhir→Pemeriksaan |
| Standar UT | ASTM A388 atau EN10228, dll. |
- Laporan tes benturan dan perhitungan kekuatan dengan informasi bahan yang diterapkan
- 100% laporan NDT (inspeksi non destruktif) pelat baja, tabung dan elektroda
- Laporan inspeksi tes sinar-X, sinar-γ dan penetrant cair (jubah las) untuk memastikan kualitas boiler
- Laporan uji hidrolik untuk memverifikasi tekanan kerja standar dan keselamatan
