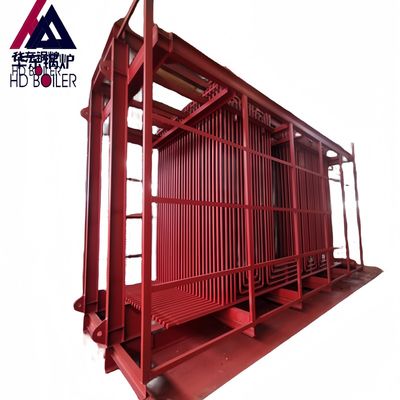

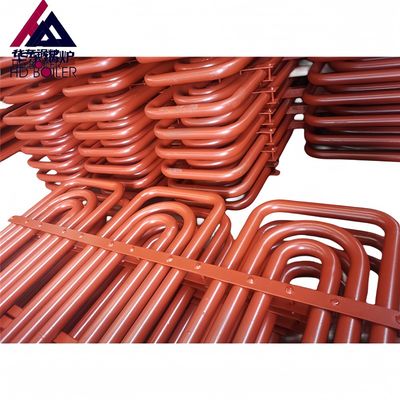

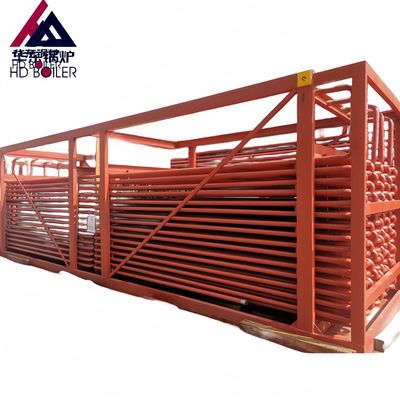

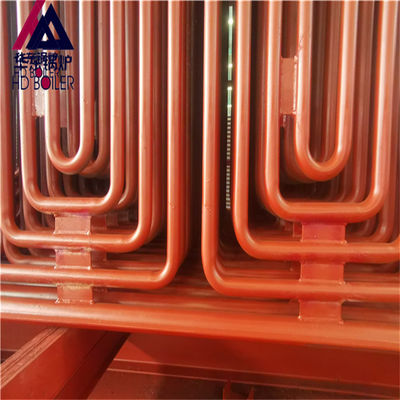

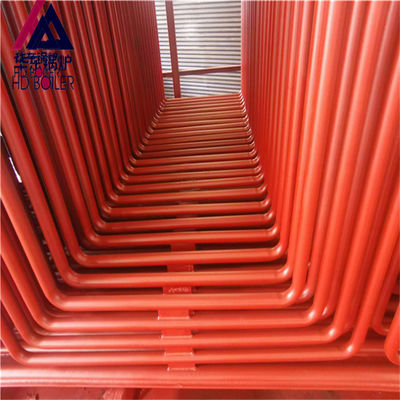

Ekonomizer Boiler Efisiensi Tinggi dengan Produksi Uap Max. 20t/h dan Garansi 5 Tahun untuk Penggunaan Industri
Product Details
| Jenis: | Sirkulasi Alam | Struktur: | Tabung api dan tabung air |
|---|---|---|---|
| Tekanan: | Tekanan Rendah / Tinggi | Produksi Uap: | <i>Max.</i> <b>Maks.</b> <i>20t/h</i> <b>20t/jam</b> |
| Gaya: | Vertikal | Bahan bakar: | Batubara / Gas / Batubara / Panas air |
| Keluaran: | Air Panas / Uap | Perawatan permukaan: | Dilukis |
| Bahan: | Baja paduan, baja karbon, SA210C, SA213T22 | Standar Bahan: | ASTM, EN atau ISO |
| kisaran berat: | 10 ton hingga 1000 ton | Proses peleburan: | EF+LF + VD |
| Proses: | Bahan-> ingot-> panas/dingin-rolling-> Perlakuan panas-> Inspeksi-> Mesin Kasar-> | Ut Standar: | ASTM A388 atau EN10228 |
| Perlakuan panas: | Menormalkan+ tempering | ||
| Menyoroti |
Max. 20t/h Boiler Produksi Uap Economizer,5 Tahun Garansi Boiler Economizer,Pemanas industri menggunakan boiler |
||
Product Description
- Economizer tabung polos
- Economizer tabung bersirip H
- Economizer tabung bersirip spiral
- Area pertukaran panas yang lebih besar dengan lebih sedikit tabung
- Peningkatan area aliran gas buang untuk mengurangi kecepatan aliran dan abrasi
- Tersedia sebagai tabung bersirip H ganda untuk meningkatkan kekakuan pada baris tabung panjang
| Keterangan | Economizer boiler |
|---|---|
| Material | Baja paduan, Baja karbon, SA210C, SA213T22, dll. |
| Standar material | ASTM, EN atau ISO dll. |
| Dimensi | Kustomisasi |
| Berat | Min: 10 ton Maks.:1000 ton |
| Proses Peleburan | EF+LF + VD |
| Proses | Material→Ingot → Penggulungan Panas/Dingin→ Perlakuan panas (Normalisasi+ tempering) → Inspeksi →pemesinan kasar→UT →Perlakuan panas ke-2 →pemesinan finishing →Inspeksi |
| Standar UT | ASTM A388 atau EN10228, dll |
- Laporan uji dampak dan perhitungan kekuatan dengan informasi material yang diterapkan
- Laporan NDT (pemeriksaan non-destruktif) 100% dari pelat baja, tabung, dan elektroda
- Laporan inspeksi uji penetran sinar-X, γ-ray, dan cairan (sambungan las)
- Laporan uji hidrolik untuk memastikan tekanan kerja dan keamanan standar
